JMZ-TK Series
Customized Solutions for JMZ-TK: Meeting Your Unique Vibration Control Needs
No two leaves in the world are exactly the same, and vibration problems in industrial applications are equally diverse. Differences in equipment weight, center-of-gravity distribution, disturbance frequency, and installation environment mean there is no such thing as a "one-size-fits-all" vibration isolator. Xi'an Hoan Microwave Co., Ltd. deeply understands this; therefore, the JMZ-TK series is not just a catalog of standard products, but a robust platform for customized vibration control solutions.
Xi'an Hoan has a team of experienced engineers who can provide comprehensive services from consultation, testing, and design to production, tailored to the specific needs of customers.
Load and Performance Customization
The JMZ-TK series offers a rated load range from several dozen kilograms to several tons. By adjusting the material, contact area, and preload of the internal friction pairs, engineers can precisely "tune" the isolator’s damping coefficient and natural frequency. This ensures perfect alignment with the dynamic characteristics of the customer’s equipment, achieving optimal vibration isolation performance.
Structure and Interface Customization
To address special installation space and interface requirements, Xi'an Hoan can customize the JMZ-TK’s overall dimensions, mounting hole positions, and connection methods (such as top mounting, bottom mounting, side mounting, etc.). For example, a flat structure can be designed for equipment requiring a low installation height; for scenarios with anti-loosening requirements, accessories like safety chains can be added.
Environmental Adaptability Customization
As mentioned earlier, the JMZ-TK already boasts strong environmental adaptability. For extremely special working conditions—such as ultra-high vacuum, high radiation, and ultra-low temperature—the team can selectively use special materials, lubricants, and surface treatment processes. This ensures the product maintains stable performance even in extreme environments.
This "tailor-made" service enables the JMZ-TK series to be successfully applied in high-reliability special fields such as aerospace, ships and warships, and national-level laboratories. When you choose Xi'an Hoan, you receive not just a set of vibration isolators, but a personalized solution—backed by a professional engineering team—that completely resolves your vibration challenges.

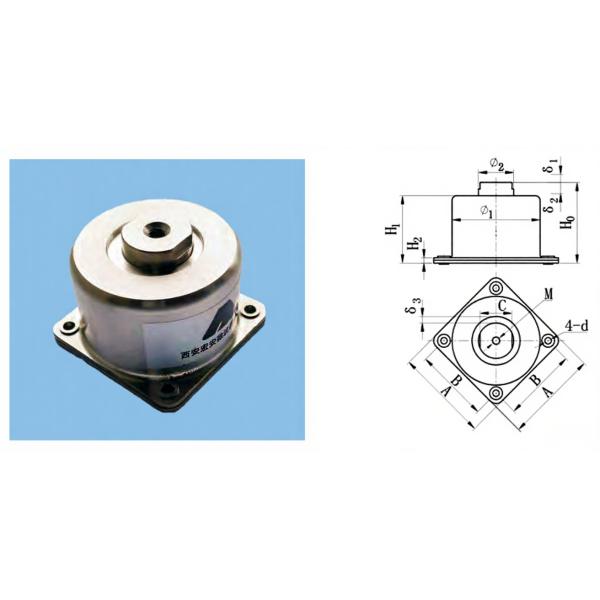

Structural dimension diagram
| Model | Installation dimensions(mm) | Overall dimensions(mm) |
| B | M | d | A | C | ∅1 | ∅2 | H1 | H2 |
| JMZ-TK-2.5A～8A | 46 | 6 | 4.1 | 58 | 20 | 55 | 22 | 36 | 3.6 |
| JMZ-TK1-25A/40A/50A | 63 | 12 | 8.2 | 78 | 20 | 70 | 22 | 56 | 6 |
Technical Parameter Table
| Model | Nominal Load (N) | Load Range (N) | Natural Frequency fn≤(Hz) | Loading Working Height H0±1(mm) | Limit Displacement | Maximum Vibration Transmissibility ηv≤ | Impact Resistance Test | Service Life (year) |
| Vertical Direction | horizontal (δ3) |
| up(δ1) | down(δ2) |
| JMZ-TK-2.5A | 25 | 20～30 | 33 | 42 | 4 | 4 | 4 | 3 | 100g | 10 |
| JMZ-TK-4A | 40 | 30～50 |
| JMZ-TK-5A | 50 | 40～60 |
| JMZ-TK-6A | 60 | 50～70 |
| JMZ-TK-7A | 70 | 60～80 |
| JMZ-TK-8A | 80 | 70～90 |
| JMZ-TK1-25A | 250 | 200～300 | 20 | 70 | 7 | 8 | 7 | 3 | 60g | 10 |
| JMZ-TK1-40A | 400 | 300～480 |
| JMZ-TK1-50A | 500 | 400～600 |
